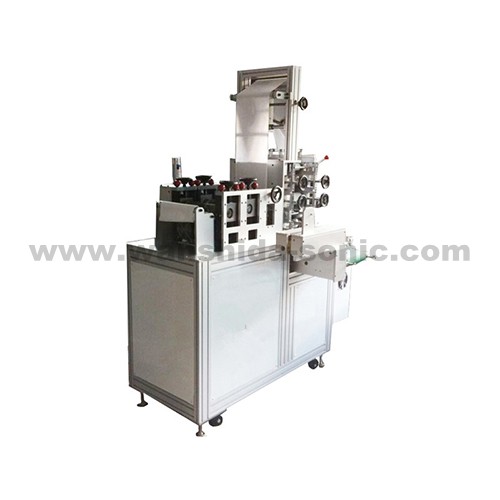

Auto fold mask machine (outside nose clip one)
Specification

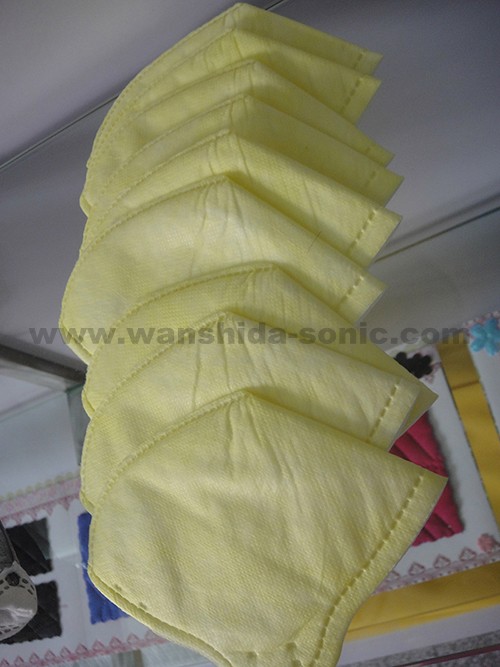

Auto fold mask machine (outside nose clip one) also called ultrasonic C-type mask machine, butterfly mask machine, the machine adopts ultrasonic technique to weld 3-5 layers PP non-woven, activated carbon and filter materials, and hole drilling, folding, welding, cutting the C-type mask embryos, capable to make 3M company’s 9001,9002 series mask.
Machine feature:
Made of aluminum, hard and nice appearance, no pollution and rust after longtime operation.
Ultrasonic forming at one time, different materials reachable can reach FFP1,FFP2,N95 standard.
Automatic counting, easy replacement of materials, different models of mask can be made with different molds, LOGO could also be made on molds.

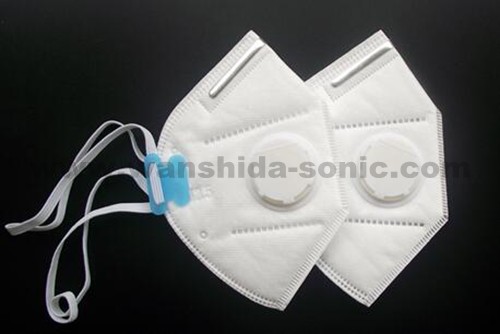

Optional breath valve and inner nose-wire installment.
| MODEL NO. |
OUTPUT POWER |
ULTRASONIC SYSTEM |
Production speed |
POWER SUPPLY |
TOTAL WEIGHT |
DIMENSIONS |
| WSDCKB |
4500W |
20KHZ |
40-60pcs/min |
40-60PCS/min |
550KGS |
3500MM(L)*1300MM(W)*1800MM(H) |
